Energy Storage Systems

Description:

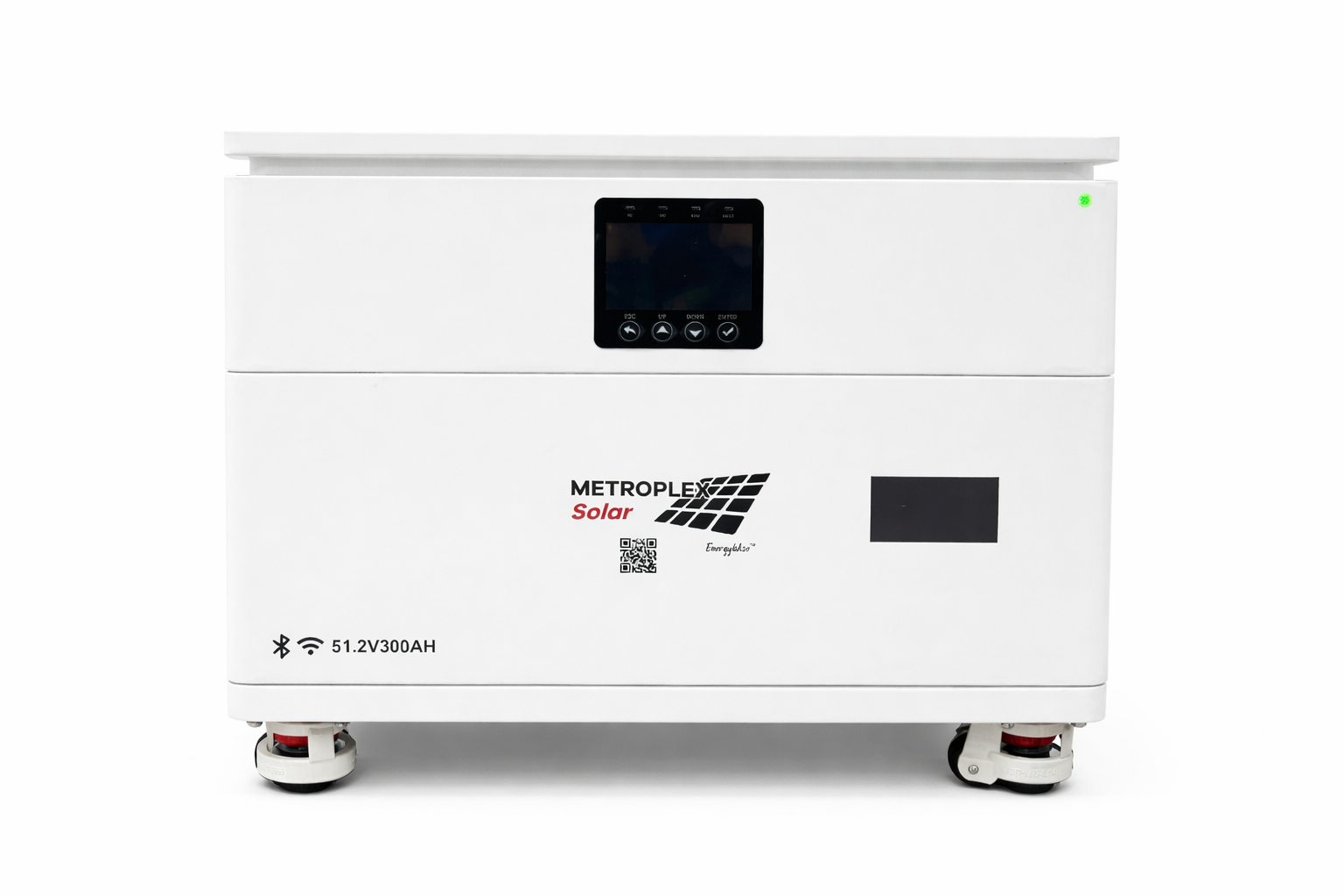

• PV Input Max. Power: 7550W*2
• Max PV Voltage Range: 500VDC
• MPPT Voltage Range: 60-450VDC
• Max. PV Current: 22.5A*2
• AC Input Rated Voltage: 230VAC
• Rated Frequency: 50Hz/60Hz
• Rater Power: 10000W
• Max. Current (RMS) 70A
• Battery Rated Voltage: 48VDC
• Rated Energy: 15KWH
• Usable Energy(90%DOD): 13824Wh
• Max. Charge/Discharge Current: 120A
• Battery Current Input: 43.5A
• Temperature Range: -10°C-60°C
• IP Grade: 1
• Max. parallel: N/A
• Altitude: Up to 4KM

Product Advantage:

• Stackable With Multiple Battery Units

Description:

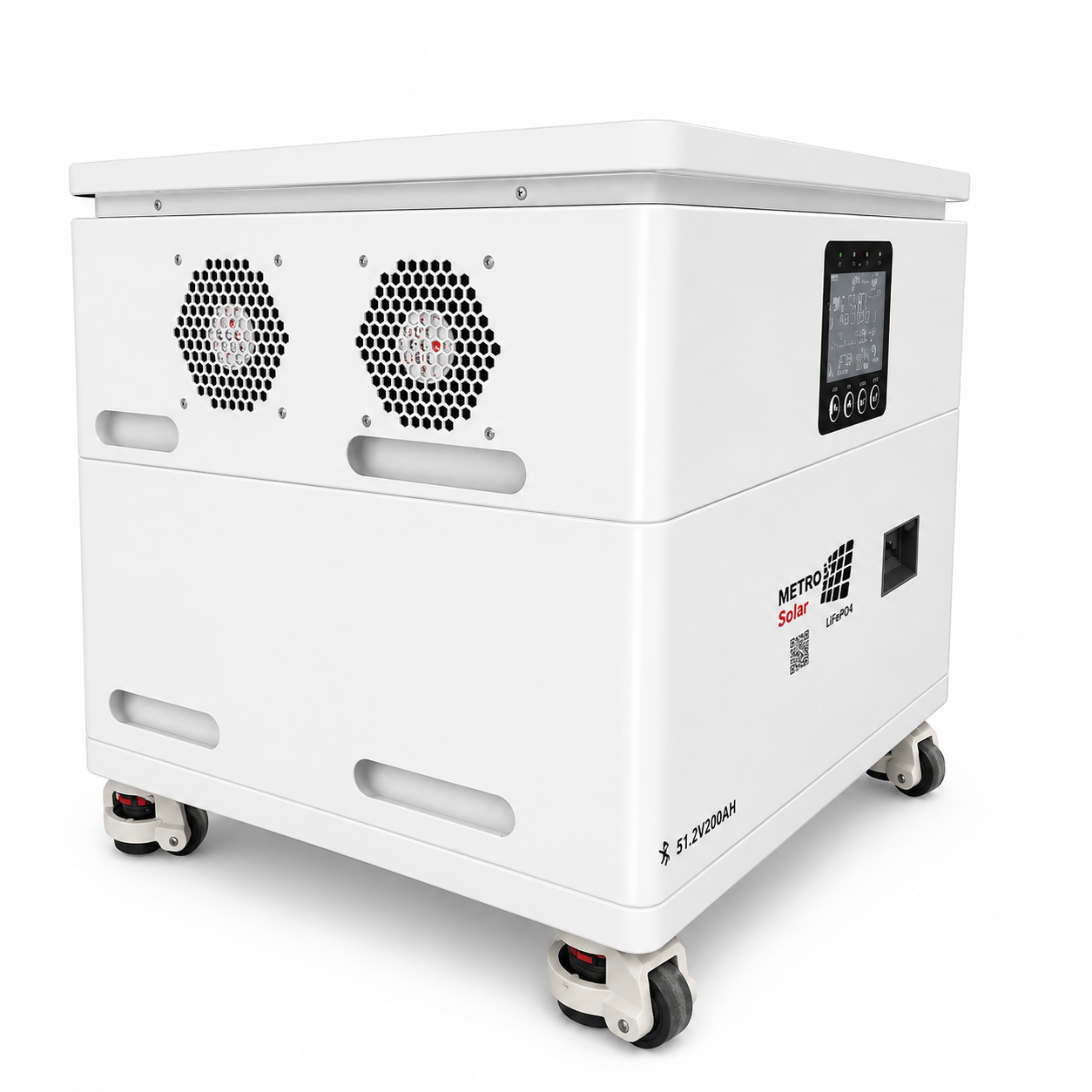

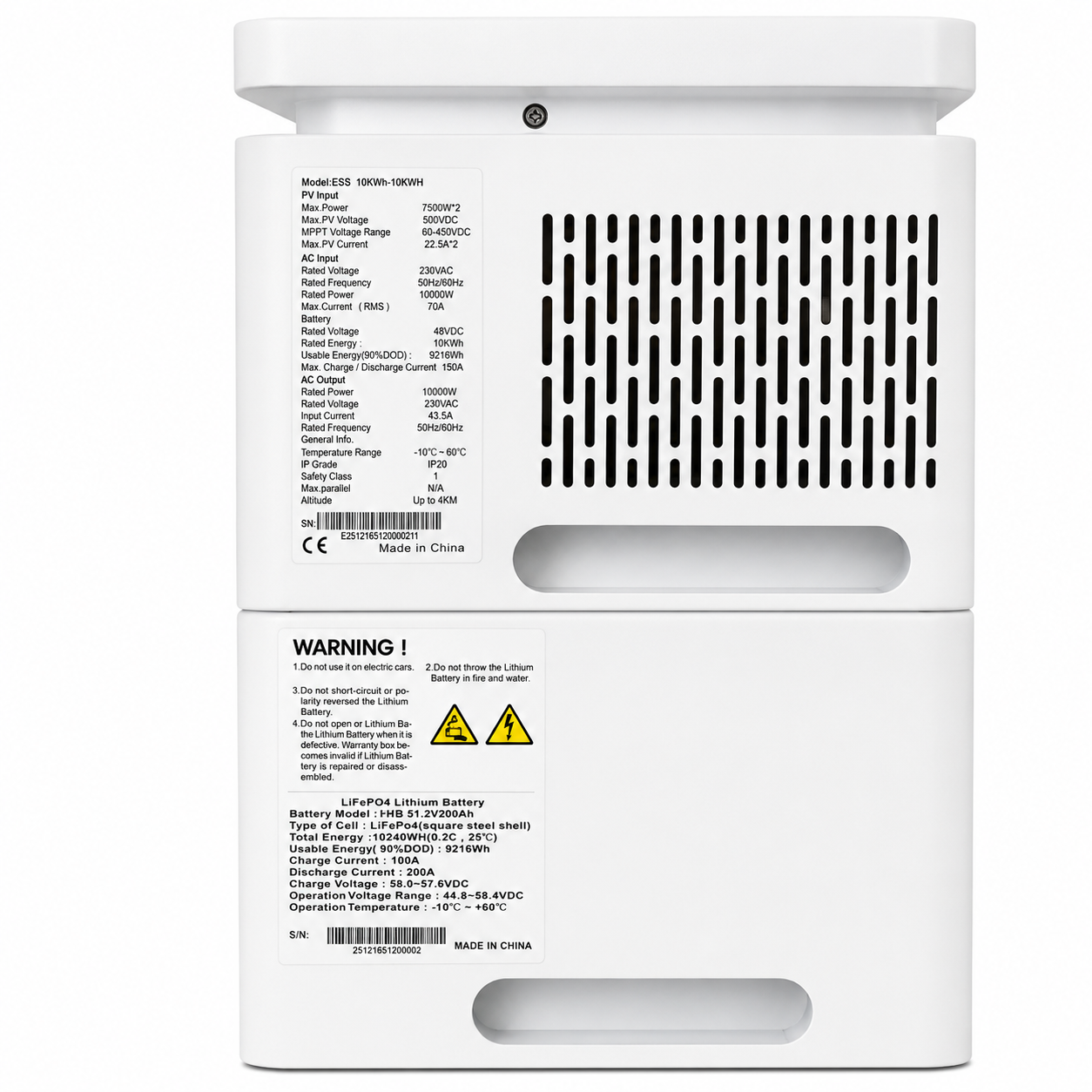

• System Model: ESS 10KW+10KWH
• Inverter Rated Power (Input/Output): 10,000W (10kW)
• AC Input/Output Voltage: 230VAC (50Hz / 60Hz)
• Maximum AC Input Current (RMS): 70A
• AC Output Current: 43.5A
• Maximum Solar (PV) Input Power: 15,000W (7,500W x 2 inputs)
• Maximum Solar (PV) Voltage: 500VDC
• Solar MPPT Voltage Range: 60 to 450VDC
• Maximum Solar (PV) Current: 45A (22.5A x 2 inputs)
• Battery Module Model and Type: HB 51.2V200Ah LiFePO4 (Square steel shell)
• Total Battery Energy: 10.24kWh (Rated at 10kWh)
• Usable Battery Energy (90 percent Depth of Discharge): 9,216Wh
• Nominal Battery Voltage: 48VDC / 51.2VDC
• Battery Operational Voltage Range: 44.8 to 58.4VDC
• Battery Charging Voltage: 56.0 to 57.6VDC
• Battery Charge Current: 100A
• Maximum System Charge/Discharge Current: 150A
• Maximum Battery Module Discharge Current: 200A
• Operating Temperature Range: Minus 10 degrees to 50 degrees Celsius
• Protection and Safety Class: IP20 (Indoor use) / Class I
• Maximum Operational Altitude: 4,000 meters (4KM)

Product Advantage:

• null

Description:

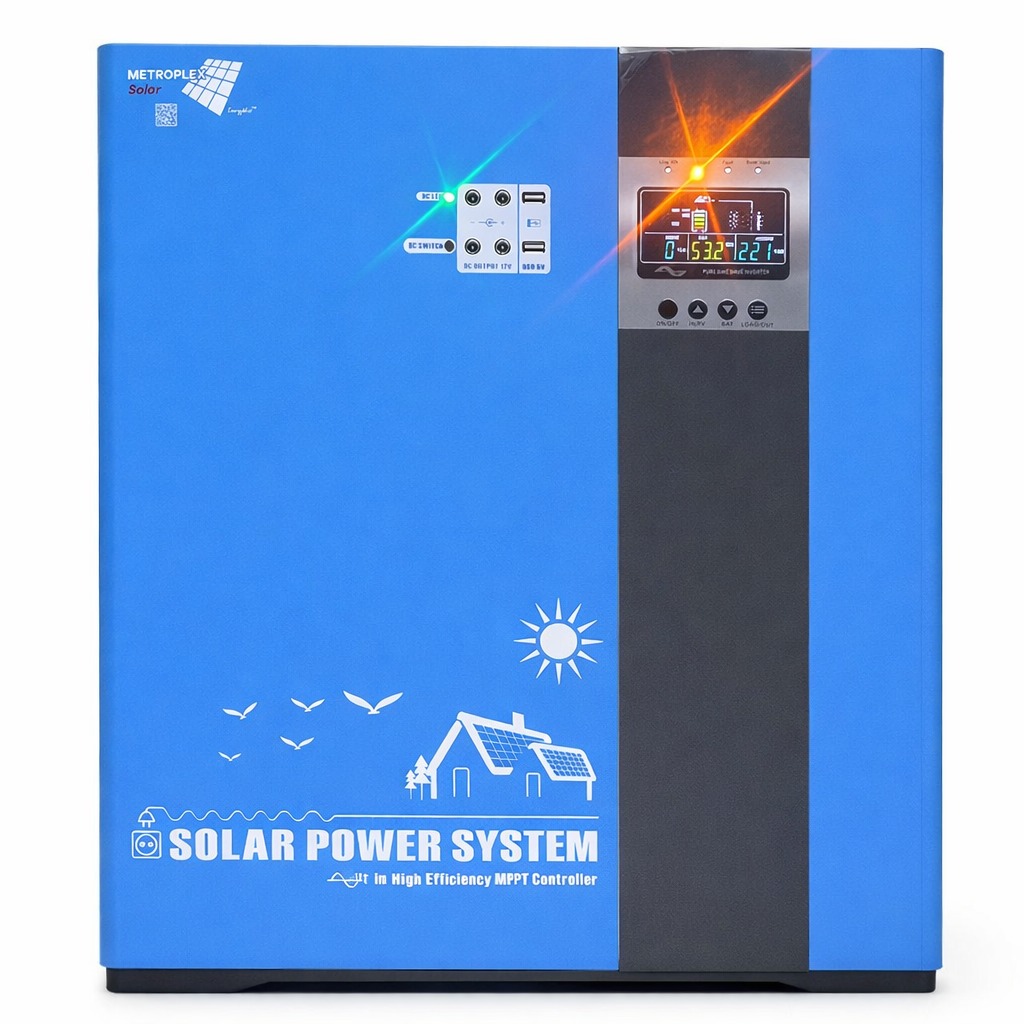

• Model: MPSG-N5000
• Capacity: 5000W
• AC Output: 220VAC Single Phase
• Max AC Charger: 50A (Adjustable)
• MPPT Solar Controller: 60A
• MPPT Voltage Range: 60-150V
• Max PV Array Power: 3072W
• Max PV Input Voltage (VOC): 160V
• Battery Type: LiFePO4 Lithium
• Battery Voltage: 51.2V
• Energy Storage: 5120Wh
• Rated Current: 100Ah
• Enclosure Rating: IP20

Product Advantage:

• null

Description:

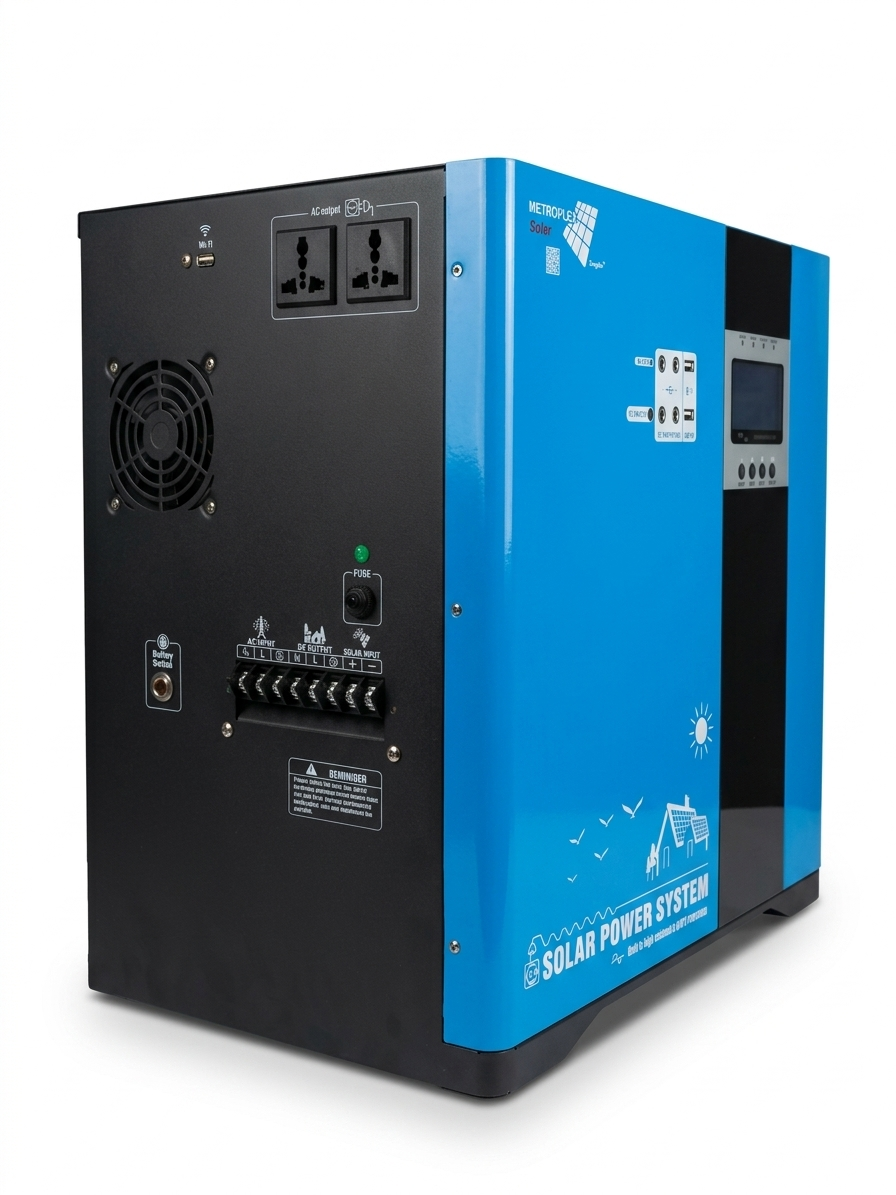

• Solar Controller Mode
• Controller Type: MPPT
• Solar Charging Current: 60A
• MPPT Voltage Range: 30-120V
• Max PV Open Circuit Voltage (VOC): 130V
• Max PV Array Power: 1536W
• LiFePO4 Lithium Battery Mode
• Nominal Battery Voltage: 25.6V
• Total Energy Storage: 2995Wh
• Rated Current: 117Ah
• Equalized Voltage: 29V
• Float Voltage: 27V
• Cut-off Voltage: 20V
• Environmental & Physical
• Operating Temperature: -10°C to 50°C
• Enclosure Rating: IP20 (Indoor use)

Product Advantage:

• null
